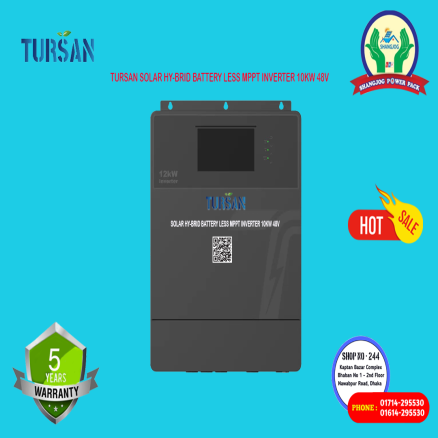

10kW Home Commercial Pure Sine Wave Hybrid Inverter
10kW home
commercial pure sine wave hybrid inverter, support connecting PV system
and grid, high conversion efficiency, strong load capacity, low
interference, waterproof, dustproof, high and low temperature
resistance.
Supports load balancing, tariff peak shaving and valley filling.
Design life up to 5 years +
Support wall mounting, waterproof, dustproof and anti-radiation
High load capacity, outputting low interference, grid level waves.
2 Years Warranty
10kW Home Commercial Pure Sine Wave Off-grid Inverter
10kW home commercial pure sine wave off-grid inverter, support connecting PV system, high conversion efficiency, strong load capacity, low interference, waterproof, dustproof, high and low temperature resistance.
Off-grid power supply, supports connection to home solar system.
Design life up to 5 years +
Support wall mounting, waterproof, dustproof and anti-radiation
High load capacity, outputting low interference, grid level waves.
2 Years Warranty
Name
Off-Grid Inverter
Efficiency (Line Mode)
>95% (Rated R load, battery full charged)
Useful Life
5+ years
Pass Through Without Battery
Yes
PV Voltage Working Range
120V-500Vdc
MPPT Operating Range
120-450Vdc
Min Startup Voltage
46Vdc
Parallel Capability
NO
Peak Efficiency
>93%
Input
Nominal DC input Voltage
48Vdc
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
230Vac
Nominal Input Frequency
230Vac
Input Voltage Range
Normal mode 90-280Vac, UPS mode 170-280Vac
Max. Charge Current
150A
Over Charge Protection
Yes
Max. Input Power
12kW
Max. Solar Charging Current
80A
Max. Input Current
16A×2
Output
