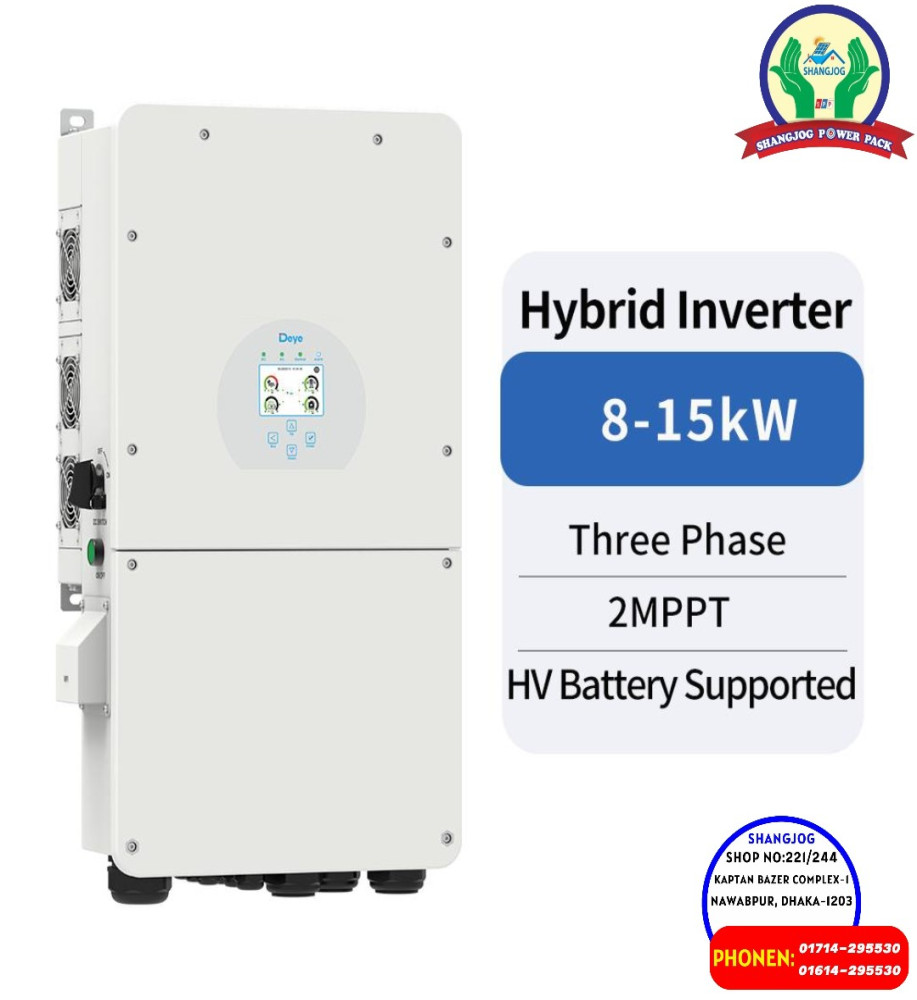

DEYE SOLAR HY-BRID MPPT THREE PHASE INVERTER 15 KW DC BATTERY VOLT 160V 800V
10 YEARS WARRANTY

SUN-8/10/12/15K-SG01HP3-US-AM2
Three Phase Hybrid Inverter | 8-15kW | 2 MPPT | HV Battery Supported
    100% unbalanced output
    AC couple to retrofit existing solar system
    Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
    Max. charging/discharging current of 50A
    High voltage battery, higher efficiency
    6 time periods for battery charging/discharging
    Support storing energy from diesel generator
Technical Specifications
    SUN-8K-SG01HP3-US-SM2
    SUN-10K-SG01HP3-US-SM2
    SUN-12K-SG01HP3-US-SM2
    SUN-15K-SG01HP3-US-SM2
    Feedback
Model  SUN-8K-SG01HP3
-US-AM2  SUN-10K-SG01HP3
-US-AM2  SUN-12K-SG01HP3
-US-AM2  SUN-15K-SG01HP3
-US-AM2
Battery Input Data
Battery Type   Lithium-ion
Battery Voltage Range (V)  160-500
Max. Charging Current (A)  50
Max. Discharging Current (A)  50
Charging Strategy forLi-ion Battery  Self-adaption to BMS
Number of Battery Input  1
PV String Input Data
Max. PV Access Power (W)
 16000  20000  24000  30000
Max. PV Input Power (W)  12000  15000  18000  22500
Max. PV Input Voltage (V)  550
Start-upVoltage (V)  180
MPPT Voltage Range (V)   150-500
Rated PV Input Voltage (V)  380
Max. Operating PV Input Current (A)  26+26
Max. Input Short-Circuit Current (A)  39+39
No. of MPP Trackers/No. of Strings MPP Tracker  2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)  8000  10000  12000  15000
Max. AC Input/Output Apparent Power (VA)  8000  10000  12000  15000
Rated AC Input/Output Current (A)  22.3  27.8  33.4  41.7
Max. AC Input/Output Current (A)  22.3  27.8  33.4  41.7
Max. Continuous AC Passthrough (grid to load) (A)  80
Peak Power (off-grid) (W)  1.5 times of rated power, 10s
Power Factor Adjustment Range  0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)  120/208   0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)  60/55-65
Grid Connection Form  3L+N+PE
Total Current Harmonic Distortion THDi  <3% (of nominal power)
DC Injection Current  <0.5% In
Efficiency
Max. Efficiency  97.6%
Euro Efficiency  97.0%
MPPTEfficiency  >99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level  TYPE II(DC),TYPE II(AC)
Interface
Communication Interface  RS485/RS232/CAN
Monitor Mode  GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃)  -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity  0-100%
Permissible Altitude  2000m
Noise (dB)  ≤55
Ingress Protection(IP) Rating  TYPE3R
Inverter Topology  Non-Isolated
Over Voltage Category  OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)  408×678×247 (Excluding Connectors and Brackets)
Weight (kg)  30
Type of Cooling  Intelligent Air Cooling
Warranty  5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation  IEEE 1547.1,SRD V2.0
Safety / EMC Standard  FCC, UL 1741
