DEYE SOLAR HY-BRID MPPT THREE PHASE INVERTER 30 KW DC BATTERY VOLT 160V 800V
10 YEARS WARRANTY

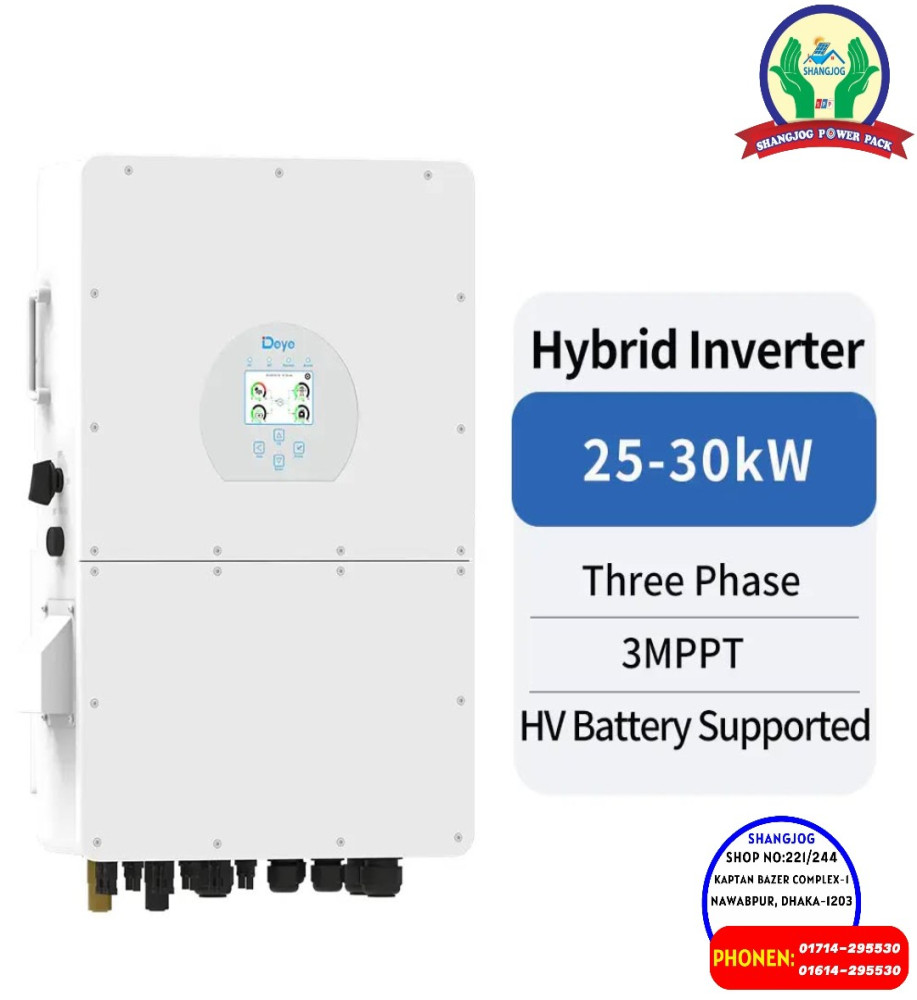

SUN-25/29.9/30K-SG02HP3-EU-AM3
Three Phase Hybrid Inverter | 25-30kW | 3 MPPT | HV Battery Supported
    100% unbalanced output
    AC couple to retrofifit existing solar system
    Max. 10 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
    Max. charging/discharging current of 75A
    High voltage battery, higher efficiency
    6 time periods for battery charging/discharging
    Support storing energy from diesel generator
Technical Specifications
    SUN-25K-SG02HP3-EU-AM3
    SUN-29.9K-SG02HP3-EU-AM3
    SUN-30K-SG02HP3-EU-AM3
    Feedback
Model  SUN-25K-SG02HP3-EU-AM3  SUN-29.9K-SG02HP3-EU-AM3  SUN-30K-SG02HP3-EU-AM3
Battery Input Data
Battery Type  Lithium-ion
Battery Voltage Range(V)  160-700
Max.Charging Current(A)  75
Max.Discharging Current(A)  75
Charging Strategy for Li-ion Battery  Self-adaption to BMS
Number of battery input  1
PV String Input Data
Max. PV Access Power (W)
 50000  59800  60000
Max DC Input Power（W）  40000  47840  48000
Max DC Input Voltage（V）  1000
Start-up Voltage（V）  180
MPPT Voltage Range（V）  150-850
Rated DC Input Voltage(V)  600
Max Input Short-Circuit Current（A）  54+54+54
Max Operating PV Input Current（A）  36+36+36
No.of MPP Trackers/No.of String Per MPP Tracker  3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）  25000  29900  30000
Max AC Input/Output Apparent Power （VA）  27500  29900  33000
Peak Power (off-grid)（W）  1.5 times of rated power,10s
Rated AC Input/Output Current（A）  37.9/36.3  45.4/43.4  45.5/43.5
Max AC Input/Output Current（A）  41.7/39.9  45.4/43.4  50/47.9
Max Continuous AC Passthrough (grid to load)（A）  80
Rated Input/Output Voltage/Range(V)  220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form  3L+N+PE
Rated Input/Output Grid Frequency/Range  50/45-55, 60/55-65
Power Factor Adjustment Range  0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi  <3% (of nominal power)
DC Injection Current  <0.5%ln
Efficiency
Max Efficiency  98.50%
Euro Efficiency  98.0%
MPPT Efficiency  ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit
Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,
Residual Current Detection
Surge Protection Level  TYPE II(DC), TYPE II(AC)
Interface
Communication Interface  RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range  -40℃+60℃,＞45℃ Derating
Permissible Ambient Humidity  0-100%
Permissible Altitude  3000m
Noise  ≤ 55
Ingress Protection(IP) Rating  IP 65
Inverter Topology  Non-Isolated
Over Voltage Category  OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm]  448x688x 270(Excluding Connectors and Brackets
Weight[kg]  46
Warranty  5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling  Intelligent air cooling
Grid Regulation  IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard  IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

.............
