DEYE SOLAR HY-BRID MPPT THREE PHASE INVERTER 50 KW DC BATTERY VOLT 160V 800V
10 YEARS WARRANTY
SUN-29.9/30/35/40/50K-SG01HP3-EU-BM3/BM4

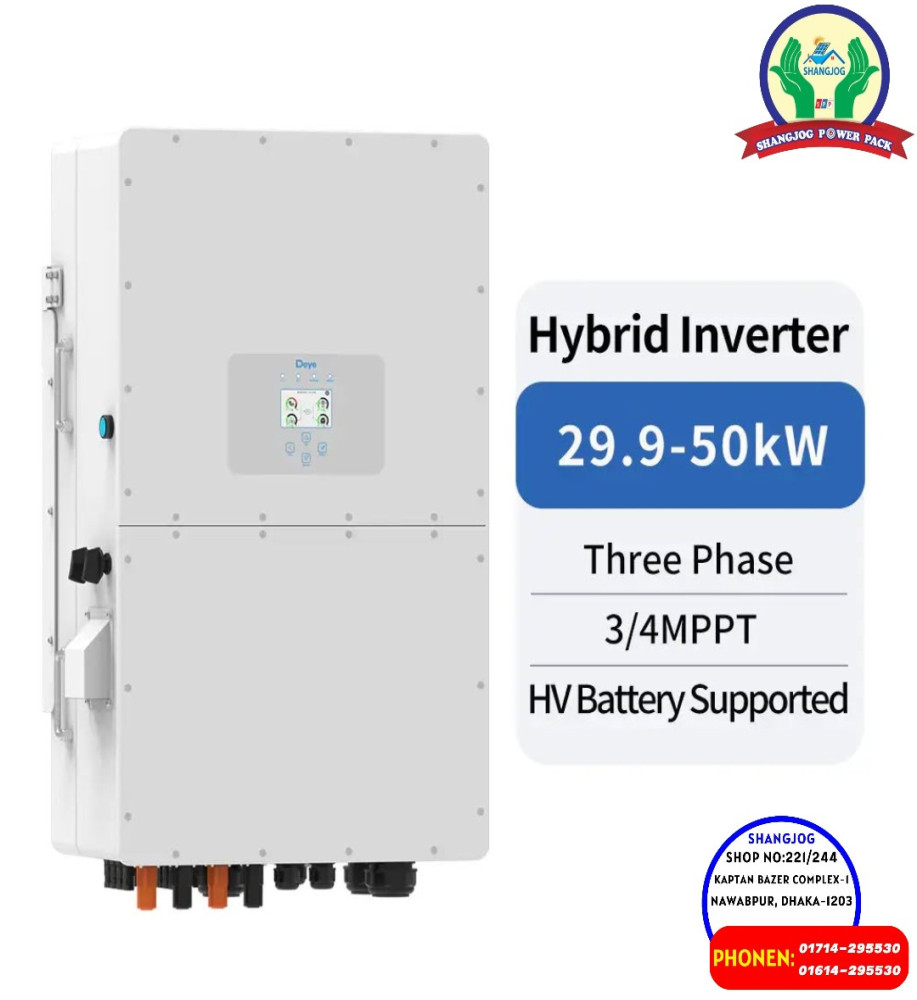

Three Phase Hybrid Inverter | 29.9-50kW | 3/4 MPPT | HV Battery Supported
    100% unbalanced output
    AC couple to retrofifit existing solar system
    Max. 10 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
    Max. charging/discharging current of 100A
    High voltage battery, higher efficiency
    6 time periods for battery charging/discharging
    Support storing energy from diesel generator
Technical Specifications
    SUN-29.9K-SG01HP3-EU-BM3
    SUN-30K-SG01HP3-EU-BM3
    SUN-35K-SG01HP3-EU-BM3
    SUN-40K-SG01HP3-EU-BM4
    SUN-50K-SG01HP3-EU-BM4
    Feedback
Model  SUN-29.9K-SG01HP3-EU-BM3  SUN-30K-SG01HP3
-EU-BM3  SUN-35K-SG01HP3
-EU-BM3  SUN-40K-SG01HP3
-EU-BM4  SUN-50K-SG01HP3
-EU-BM4
Battery Input Data
Battery Type  Lithium-ion
Battery Voltage Range(V)  160-800
Max.Charging Current(A)  50+50
Max.Discharging Current(A)  50+50
Charging Strategy for Li-ion Battery  Self-adaption to BMS
Number of battery input  2
PV String Input Data
Max. PV Access Power (W)
 59800  60000  70000  80000  100000
Max DC Input Power（W）  47840  48000  56000  64000  80000
Max DC Input Voltage（V）  1000
Start-up Voltage（V）  180
MPPT Voltage Range（V）  150-850
Rated DC Input Voltage(V)  600
Max Input Short-Circuit Current（A）  55+55+55  55+55+55+55
Max Operating PV Input Current（A）  36+36+36  36+36+36+36
No.of MPP Trackers/No.of String Per MPP Tracker  3/2+2+2  4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）  29900  30000  35000  40000  50000
Max AC Input/Output Apparent Power （VA）  29900  33000  38500  44000  55000
Peak Power (off-grid)（W）  1.5 times of rated power,10s
Rated AC Input/Output Current（A）  45.4/43.4  45.5/43.5  53.1/50.8  60.7/58.0  75.8/72.5
Max AC Input/Output Current（A）  45.4/43.4  50/47.9  58.4/55.8  66.7/63.8  83.4/79.8
Max Continuous AC Passthrough (grid to load)（A）  200
Rated Input/Output Voltage/Range(V)  220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form  3L+N+PE
Rated Input/Output Grid Frequency/Range  50/45-55, 60/55-65
Power Factor Adjustment Range  0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi  <3% (of nominal power)
DC Injection Current  <0.5%ln
Efficiency
Max Efficiency  97.60%
Euro Efficiency  97.0%
MPPT Efficiency  ＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit
Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,
Residual Current Detection
Surge Protection Level  TYPE II(DC), TYPE II(AC)
Interface
Communication Interface  RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range  -40℃+60℃,＞45℃ Derating
Permissible Ambient Humidity  0-100%
Permissible Altitude  2000m
Noise  ≤ 65 dB(A)
Ingress Protection(IP) Rating  IP 65
Inverter Topology  Non-Isolated
Over Voltage Category  OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm]  527*894*294（Excluding connectors and brackets）
Weight[kg]  80
Warranty  5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling  Intelligent air cooling
Grid Regulation  IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard  IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

.............
