DEYE SOLAR HY-BRID MPPT SINGLE PHASE 220V INVERTER 18 KW DC BATTERY VOLT 40V 60V
10 YEARS WARRANTY

SUN-12/14/16/18K-SG01LP1-EU-AM3-P

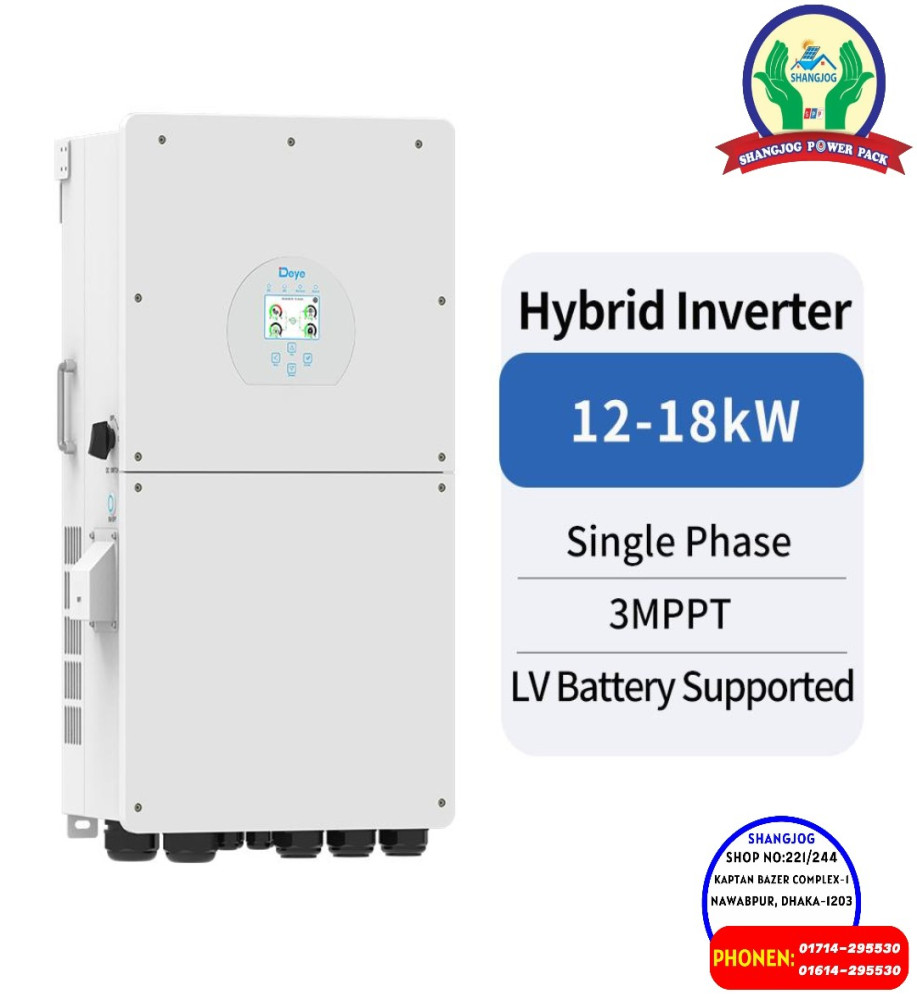

Single Phase Hybrid Inverter | 12-18kW | 3 MPPT | LV Battery Supported

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. charging/discharging current of350A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel

Technical Specifications

SUN-12K-SG01LP1-EU-AM3-P

SUN-14K-SG01LP1-EU-AM3-P

SUN-16K-SG01LP1-EU-AM3-P

SUN-18K-SG01LP1-EU-AM3-P
Feedback

Model SUN-12K-SG01LP1-EU-AM3-P SUN-14K-SG01LP1-EU-AM3-P SUN-16K-SG01LP1-EU-AM3-P SUN-18K-SG01LP1-EU-AM3-P
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging Current(A) 220 250 290 350
Max.Discharging Current(A) 220 250 290 350
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 2
PV String Input Data
Max. PV Access Power (W)
24000 28000 32000 36000
Max DC Input Power（W） 19200 22400 25600 28800
Max DC Input Voltage（V） 500
Start-up Voltage（V） 125
MPPT Voltage Range（V） 150-425
Rated DC Input Voltage(V) 370
Max. Operating PV Input Current (A) 36+36+36
Max. Input Short-Circuit Current (A) 54+54+54
No.of MPP Trackers/No.of String Per MPP Tracker 3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W） 12000 14000 16000 18000
Max AC Input/Output Apparent Power （VA） 13200 15400 17600 19800
Peak Power (off-grid)（W） 2 times of rated power,10s
Rated AC Input/Output Current（A） 54.6/52.2 63.7/60.9 72.8/69.6 81.9/78.3
Max AC Input/Output Current（A） 60/57.4 70/67 80/76.6 90/86.1
Max Continuous AC Passthrough (grid to load)（A） 100
200
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency ＞99%
Equipment Protection
Integrated

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 3000m
Noise ＜55
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC IV(AC)
Cabinet size（W*H*D）[mm] 464×763×282 (Excluding Connectors and Brackets)
464×863×282
Weight[kg] 54.1
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, NRS 097
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-

.............
