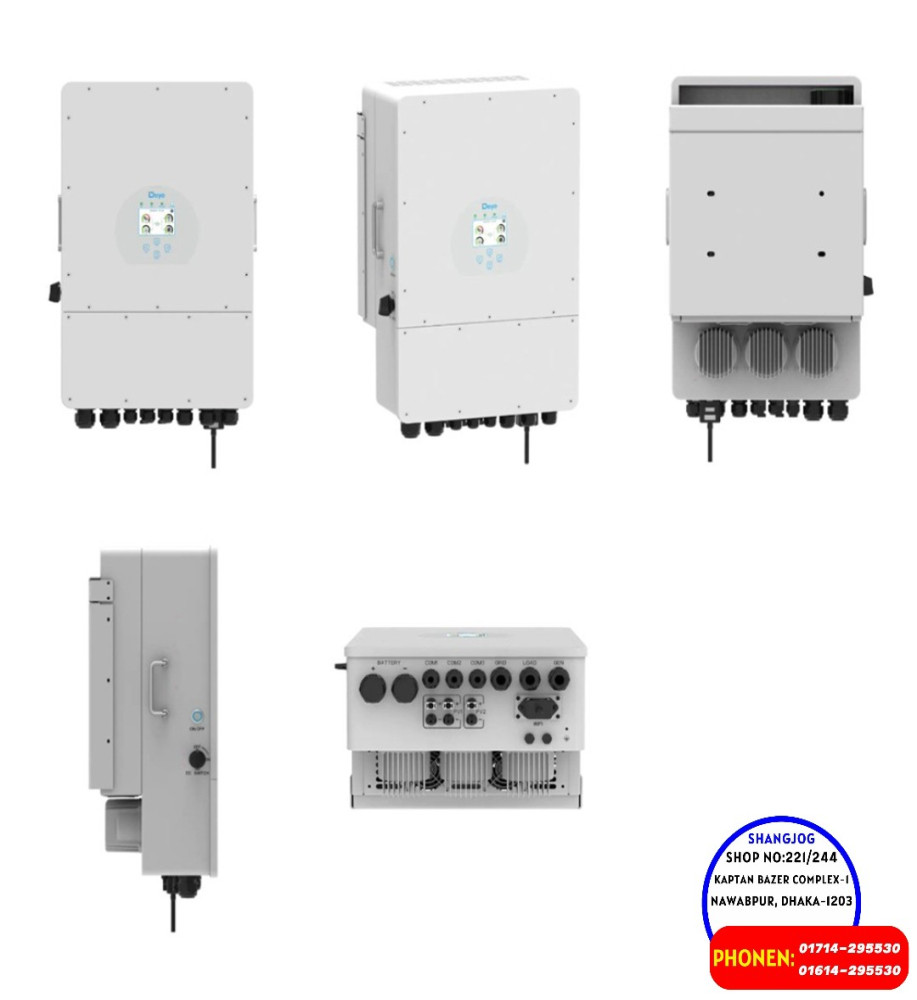

DEYE SOLAR HY-BRID MPPT THREE PHASE INVERTER 10 KW DC BATTERY VOLT 160V 800V
10 YEARS WARRANTY

BD PRICESUN-5/6/8/10/12K-SG04LP3-EU-AM2-P
Three Phase Hybrid Inverter | 5-12kW | 2 MPPT | LV Battery Supported

100% unbalanced output
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel

Max. charging/discharging current of 240A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging

Technical Specifications

SUN-5K-SG04LP3-EU-AM2-P
SUN-6K-SG04LP3-EU-AM2-P
SUN-8K-SG04LP3-EU-AM2-P
SUN-10K-SG04LP3-EU-AM2-P
SUN-12K-SG04LP3-EU-AM2-P
Feedback

Model SUN-5K-SG04LP3-EU-AM2-P SUN-6K-SG04LP3-EU-AM2-P SUN-8K-SG04LP3-EU-AM2-P SUN-10K-SG04LP3-EU-AM2-P SUN-12K-SG04LP3-EU-AM2-P
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging Current(A) 120 150 190 210 240
Max.Discharging Current(A) 120 150 190 210 240
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W) 10000 12000 16000 20000 24000
Max PV Input Power（W） 8000 9600 12800 16000 19200
MaxPV Input Voltage（V） 800
Start-up Voltage（V） 160
MPPT Voltage Range（V） 200-650
Rated PV Input Voltage(V) 550
Max. Operating PV Input Current (A) 20+20 36+20
Max. Input Short-Circuit Current (A) 30+30 54+30
No.of MPP Trackers/No.of String Per MPP Tracker 2/2+1 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W） 5000 6000 8000 10000 12000
Max AC Input/Output Apparent Power （VA） 5500 6600 8800 11000 13200
Peak Power (off-grid)（W） 2 times of rated power, 10s
Rated AC Input/Output Current（A） 7.6/7.2 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4
Max AC Input/Output Current（A） 8.4/8 10/9.6 13.4/12.8 16.7/15.9 20/19.1
Max Continuous AC Passthrough (grid to load)（A） 45
Rated Input/Output Voltage/Range(V) 220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency ＞99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 3000m
Noise ≤ 55 dB(A)
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 422×658×254（Excluding connectors and brackets）
Weight[kg] 39.8
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
