DEYE SOLAR HY-BRID MPPT THREE PHASE INVERTER 80 KW DC BATTERY VOLT 160V 800V
10 YEARS WARRANTY

SUN-60/70/75/80K-SG02HP3-EU-EM6

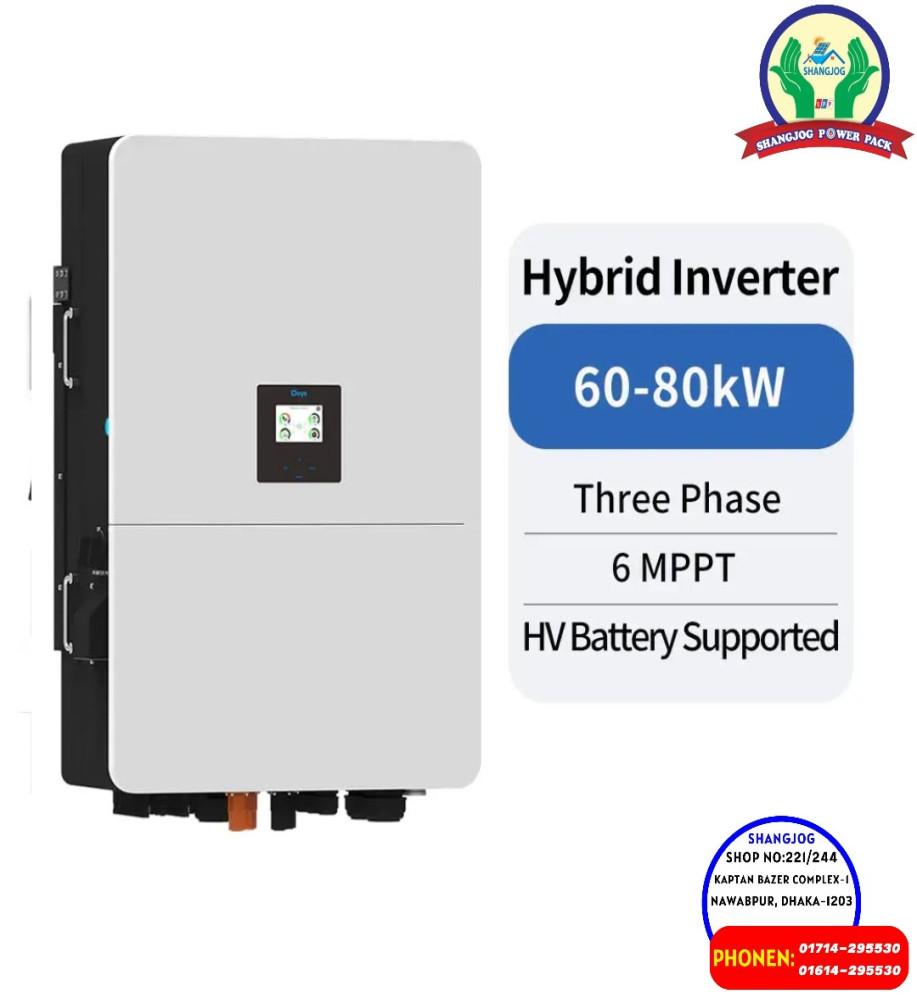

Three Phase Hybrid Inverter | 60-80kW | 6 MPPT | HV Battery Supported

100% unbalanced output
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 160A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

Technical Specifications

SUN-60K-SG02HP3-EU-EM6

SUN-70K-SG02HP3-EU-EM6

SUN-75K-SG02HP3-EU-EM6

SUN-80K-SG02HP3-EU-EM6
Feedback

Model SUN-60K-SG02HP3 -EU-EM6 SUN-70K-SG02HP3 -EU-EM6 SUN-75K-SG02HP3 -EU-EM6 SUN-80K-SG02HP3 -EU-EM6
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 160-1000
Max. Charging Current (A) 80+80
Max. Discharging Current (A) 80+80
Charging Strategy forLi-ion Battery Self-adaption to BMS
Number of Battery Input 2
PV String Input Data
Max. PV Access Power (W) 120000 140000 150000 160000
Max. PV Input Power (W) 96000 112000 120000 128000
Max. PV Input Voltage (V) 1000
Start-upVoltage (V) 180
MPPT Voltage Range (V) 150-850
Rated PV Input Voltage (V) 650
Max. Operating PV Input Current (A) 36+36+36+36+36+36
Max. Input Short-Circuit Current (A) 54+54+54+54+54+54
No. of MPP Trackers/
No. of Strings MPP Tracker 6/2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W) 60000 70000 75000 80000
Max. AC Input/Output Apparent Power (VA) 66000 77000 82500 88000
Rated AC Input/Output Current (A) 91/87 106.1/101.5 113.7/108.7 121.3/115.9
Max. AC Input/Output Current (A) 100/95.7 116.7/111.6 125/119.6 133.4/127.6
Max. Continuous AC Passthrough (grid to load) (A) 200
Peak Power (off-grid) (W) 1.5 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 98.70%
Euro Efficiency 98.1%
MPPTEfficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,
Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 3000m
Noise (dB) ≤65
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm) 606×927×314 (Excluding Connectors and Brackets)
Weight (kg) 105.0
Type of Cooling Intelligent Air Cooling
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
