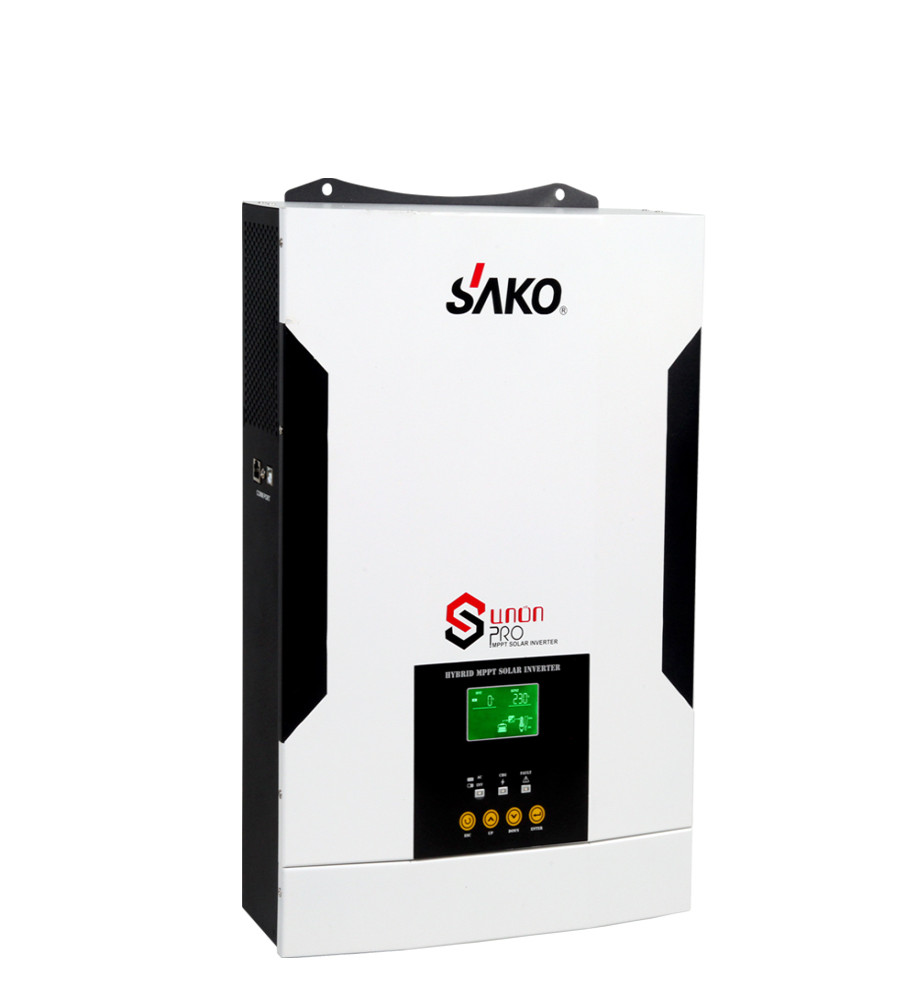

Sako Sunon Pro 5.5kW 5.5KW Off Grid Solar Hybrid Inverter 48V
- Rated Power: 5500VA / 5500W
- Pure sine wave output
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Support USB, RS485 monitoring function WIFI remote monitoring (optional)
- Voltage: 230VAC
- UPS: 170-280VAC
- Appliances: 90-280VAC
- Surge Power: 11000VA
- Efficiency(Peak): 90%
- Battery voltage: 48VDC
- Maximum PV Array Power: 6000W
- MPPT Range at Operation Voltage: 120-450VDC
- Rated Power: 5500VA / 5500W
- Features
- Pure sine wave output
- Cold start function
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Support USB, RS485 monitoring function WIFI remote monitoring (optional)
- Input
- Voltage: 230VAC
- Selectable Voltage Range
- UPS: 170-280VAC
- Appliances: 90-280VAC
- Frequency Range; 50Hz/60Hz(Auto sensing)
- Output
- AC Voltage Regulation (Batt. Model): 230VAC±5%
- Surge Power: 11000VA
- Efficiency(Peak): 90%
- Transfer Time:
- UPS: 10MS
- Appliances: 20MS
- Pure sine wave Wave form
- No load current: 1.1A
- Battery
- Battery voltage: 48VDC
- Low battery alarming voltage: 44.0VDC
- Low battery cut off protection voltage: 42.0VDC
- Low battery recovery voltage: 46.0VDC
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 64VDC
- MPPT Solar Charger & AC Charger
- Maximum PV Array Power: 6000W
- MPPT Range at Operation Voltage: 120-450VDC
- Maximum PV Array Open Circuit Voltage: 500DC
- Number of MPPT trackers/Max output current: 100A
- Maximum AC Charge Current: 60A
- Maximum Charge Current: 100A
- Maximum Efficiency: 98%
- Best Panel configuration
- 300Wp x 9pcs x 36V (2970Wp) x 2Parallel
- Physical
- Dimension D x W x H: 481 x 313 x 117mm
- Net Weight: 10.5 Kg
- Gross Weight: 11.7 Kg
- Operating Environment
- Humidity: 5 to 95% Relative Humidity (Non-condensing)
- Operation Temperature: -10°C-50°C
