Shangjog Power Pack

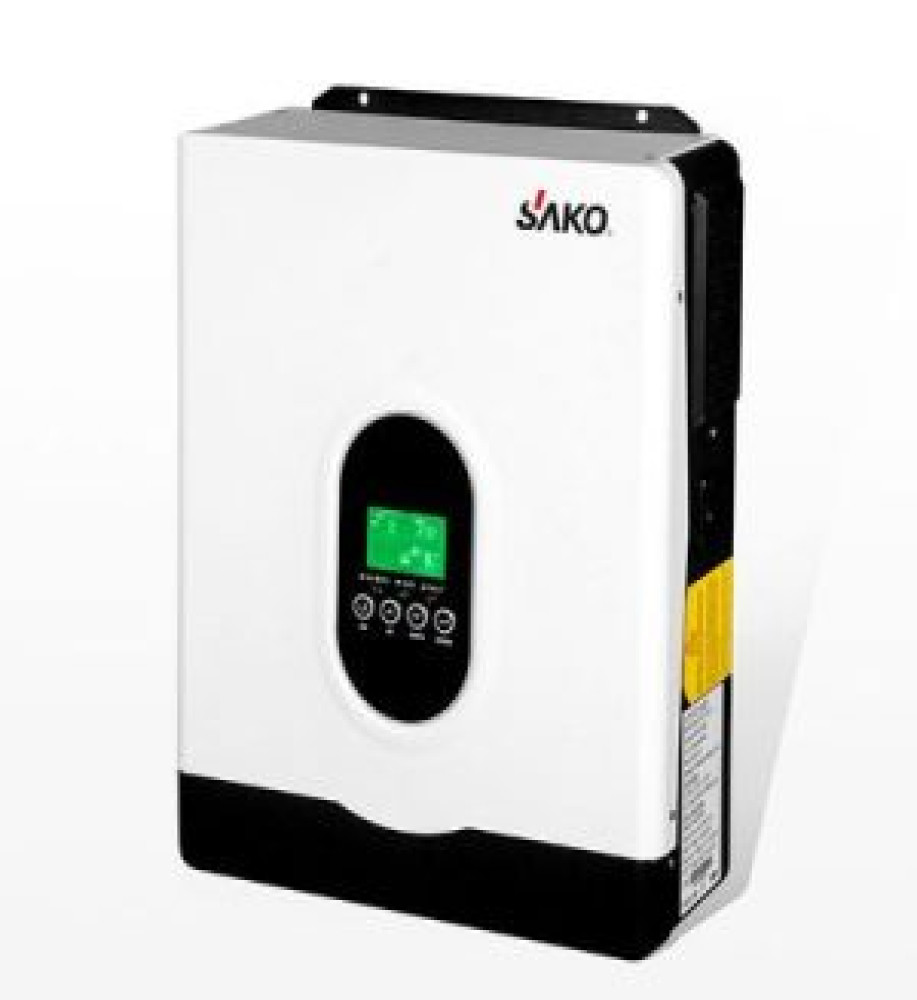

SAKO 3.2Kw 24V MPPT Solar Inverter

৳30000

Key Points

Quantity:

No specification added.

Rated Power: 3200VA/3000W
Input
- Voltage: 230VAC
- Selectable Voltage Range
  - UPS: 170-280VAC
  - Appliances: 90-280VAC
- Frequency Range: 50Hz/60Hz(Auto Sensing)
Output
- AC Voltage Regulation (Batt.Model): 230VAC +-5%
- Surge Power: 3200VA
- Power Factor: 0.8
- Efficiency (Peak): 90%
- Transfer Time
  - UPS: 10ms
  - Appliances: 20ms
- Wave Form: Pure Sine Wave
- No Load Current: 1.0A
Battery
- Battery Voltage: 12VDC
- Low Battery Alarming Voltage: 11VDC
- Low Battery Cut Off Protection Voltage: 10.5VDC
- Low Battery Recovery Voltage: 11.5VDC
- Floating Charge Voltage: 13.5VDC
- Overcharge Protection: 16VDC
- Smart battery protection
MPPT Solar Charger & AC Charger
- Maximum PV Array Power: 3500W
- MPPT Range Operation Vol: 30-450VDC
- Best PV range: 120-400VDC
- Maximum PV Array Open Circuit Vol.: 400VDC
- Number of MPPT trackers / Max output current: 80A
- Maximum AC Charge Current: 60A
- Maximum Efficiency: 98%
Communication Interface
- RS232 / GPRS / Optional WIFI
Physical
- Dimension D x W x H: 400 x 306 x 103mm
- Net Weight: 5.4 Kg
- Gross Weight: 6.1 Kg
Operating Environment
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operation Temperature: -10°C-50°C

.....
