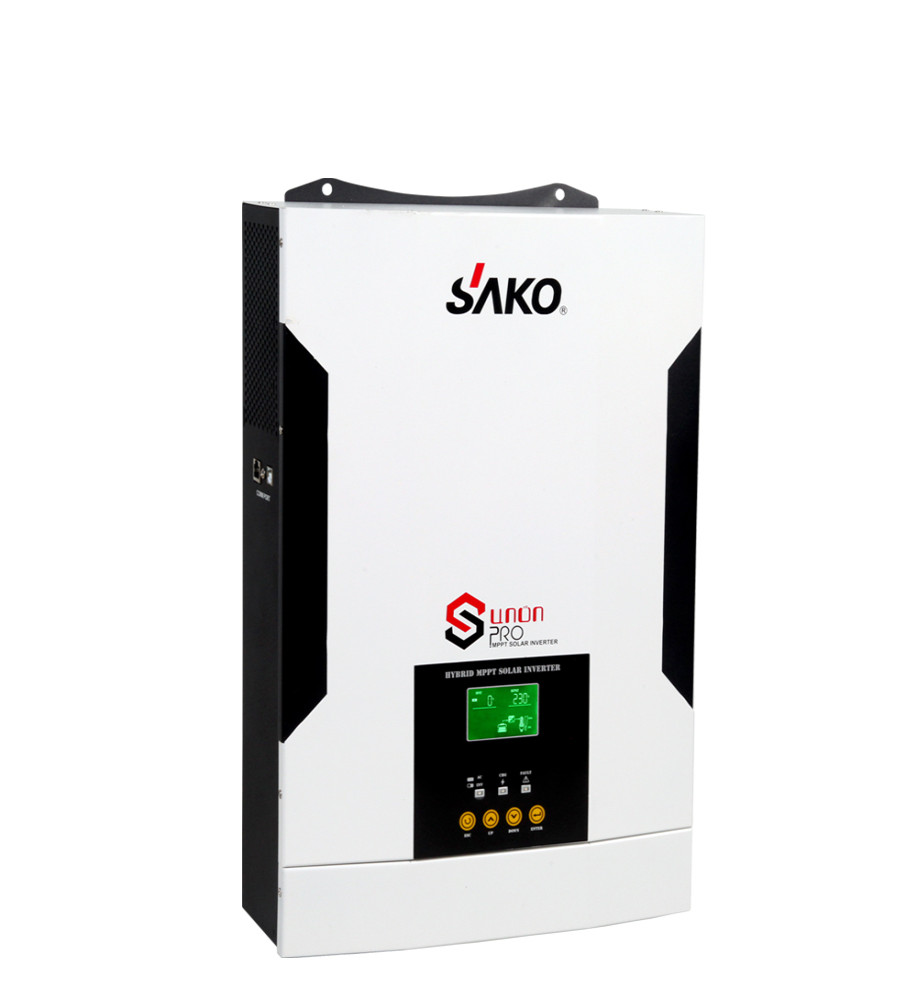

Sako Sunon Pro 3.5kW 24V | Hybrid solar Inverter

৳40000

Key Points

Quantity:

No specification added.

Rated Power: 3500VA / 3500W
Features
- Pure sine wave output
- Cold start function
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Support USB, RS485 monitoring function WIFI remote monitoring (optional)
Input
- Voltage: 230VAC
- Selectable Voltage Range
  - UPS: 170-280VAC
  - Appliances: 90-280VAC
- Frequency Range; 50Hz/60Hz(Auto sensing)
Output
- AC Voltage Regulation (Batt. Model): 230VAC±5%
- Surge Power: 7000VA
- Efficiency(Peak): 90%
- Transfer Time:
  - UPS: 10MS
  - Appliances: 20MS
- Pure sine wave Wave form
- No load current: 1.0A
Battery
- Battery voltage: 24VDC
- Low battery alarming voltage: 22.0VDC
- Low battery cut off protection voltage: 21VDC
- Low battery recovery voltage: 23.0VDC
- Floating Charge Voltage: 27VDC
- Overcharge Protection: 32VDC
MPPT Solar Charger & AC Charger
- Maximum PV Array Power: 5000W
- MPPT Range at Operation Voltage: 120-450VDC
- Maximum PV Array Open Circuit Voltage: 500DC
- Number of MPPT trackers/Max output current: 100A
- Maximum AC Charge Current: 60A
- Maximum Charge Current: 100A
- Maximum Efficiency: 98%
Best Panel configuration
- 300Wp x 9pcs x 36V (2700Wp) x 2Parallel
Physical
- Dimension D x W x H: 481 x 313 x 117mm
- Net Weight: 9.8 Kg
- Gross Weight: 11 Kg
Operating Environment
- Humidity: 5 to 95% Relative Humidity (Non-condensing)
- Operation Temperature: -10°C-50°C

.....
