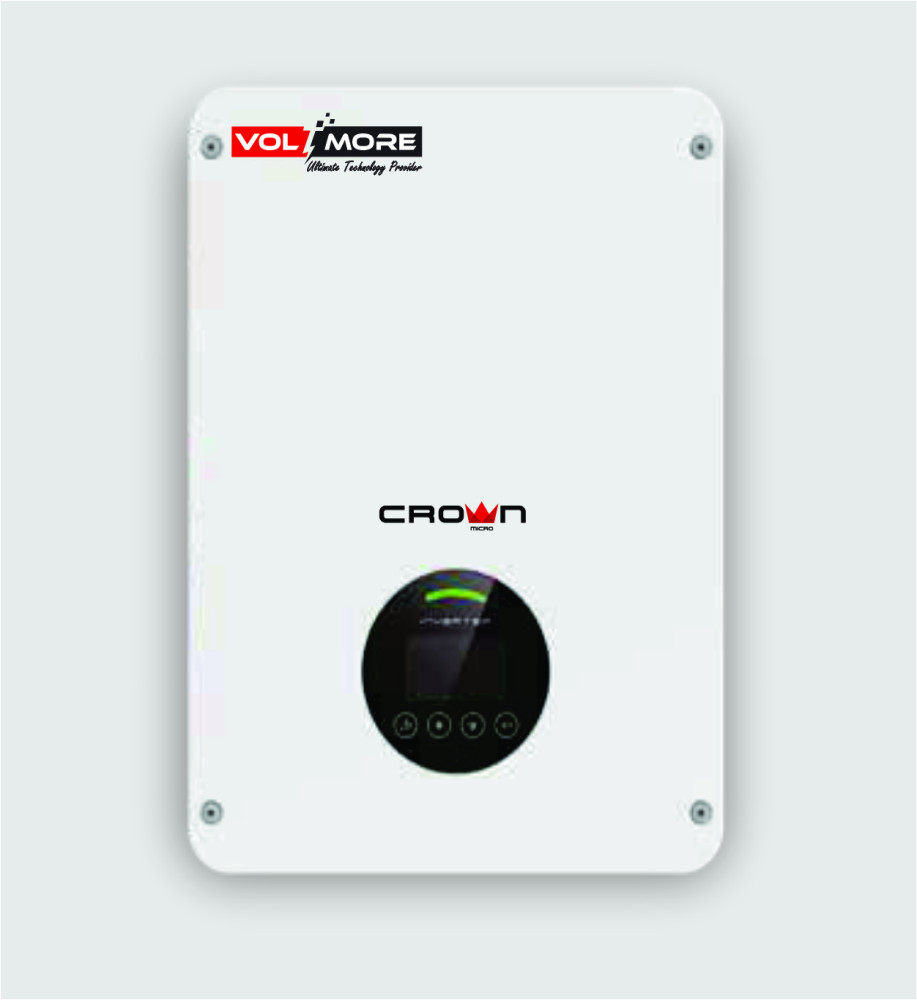

Crown Micro Voltmore 3KW-SINGLE-PHASE Solar Inverter | IP66 Protection | Price In BD
- Ongrid single phase MPPT based inverter
- AC grid frequency: 50Hz / 60Hz
- High efficiency: up to 97.6%
- IP66 protection
- DC switch, anti-islanding & over current protection
- Wi- fi/ 4G plug optional
- Max. PV voltage: 600V max
- Compatible with all major types of PV panels
- Type III DC SPD / Type III AC SPD
- 10 Years Official Warranty
MODEL | VMGI-1KW-SP | VMGI-2KW-SP | VMGI-3KW-SP |
RATED POWER | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W |
INPUT (DC) | |||
Max. DC voltage | 600VDC | ||
Nominal voltage | 380VDC | ||
Start voltage | 60V | 80V | 80V |
MPPT voltage range | 60V ~ 560V | 80V ~ 560V | 80V ~ 560V |
Number of MPPT | 1 | ||
Strings per MPPT | 1 | ||
Max. input current per MPPT | 13A | ||
Max. short-circuit current per MPPT | 15.6A | ||
OUTPUT (AC) | |||
Nominal AC output power | 1000W | 2000W | 3000W |
Max. AC apparent power | 1100VA | 2200VA | 3300VA |
Nominal AC voltage | 230V L-N | ||
AC grid frequency range | 50Hz / 60Hz ± 5Hz | ||
Max. output current (A) | 4.8A | 9.6A | 14.4A |
Power factor | 0.8 leading – 0.8 lagging | ||
THDI | < 3% | ||
EFFICIENCY | |||
Max. efficiency | 97.00% | 97.50% | 97.60% |
Euro efficiency | 96.50% | 97.00% | 97.00% |
PROTECTION DEVICES | |||
DC switch | YesCrown Micro Voltmore 3KW-SINGLE-P | ||
Anti-islanding protection | Yes | ||
Output over current protection | Yes | ||
DC reverse polarity protection | Yes | ||
DC / AC surge protection | DC type III; AC type III | ||
Insulation detection | Yes | ||
AC short circuit protection | Yes | ||
GENERAL SPECIFICATION | |||
Dimensions, W*H*D (mm) | 350*290*120 | ||
Weight (Kgs) | 7.3 | 8 | 8 |
ENVIRONMENT | |||
Operating temperature range | -25°C ~ +60°C | ||
Cooling type | Natural convection | ||
Max. operating altitude | 4000 m | ||
Max. operating humidity | 0 – 100% | ||
AC output terminal type | Quick connector | ||
IP class | IP66 | ||
Topology | Transformer-less | ||
Communication interface | RS-485 / Wi- fi/ 4G | ||
Display | LCD / Bluetooth + App | ||
............
