No specification added.
- Pure sine wave solar MPPT based inverter
- Wide MPPT input voltage range upto 550VDC
- 5″ LCD display for comprehensive information
- Battery independent design
- Parallel operation up to 4 units (optional for 3.6)
- Feed-in to the grid function
- Built-in BMS & Wifi
- Maximum PV input current, 27A (3.6KW)
- Dual output for smart load management
- Compatible to AC mains or generator input
- Multiple protection for AC short-circuit
- DC short circuit, over current protection
- Overload protection, galvanically isolated

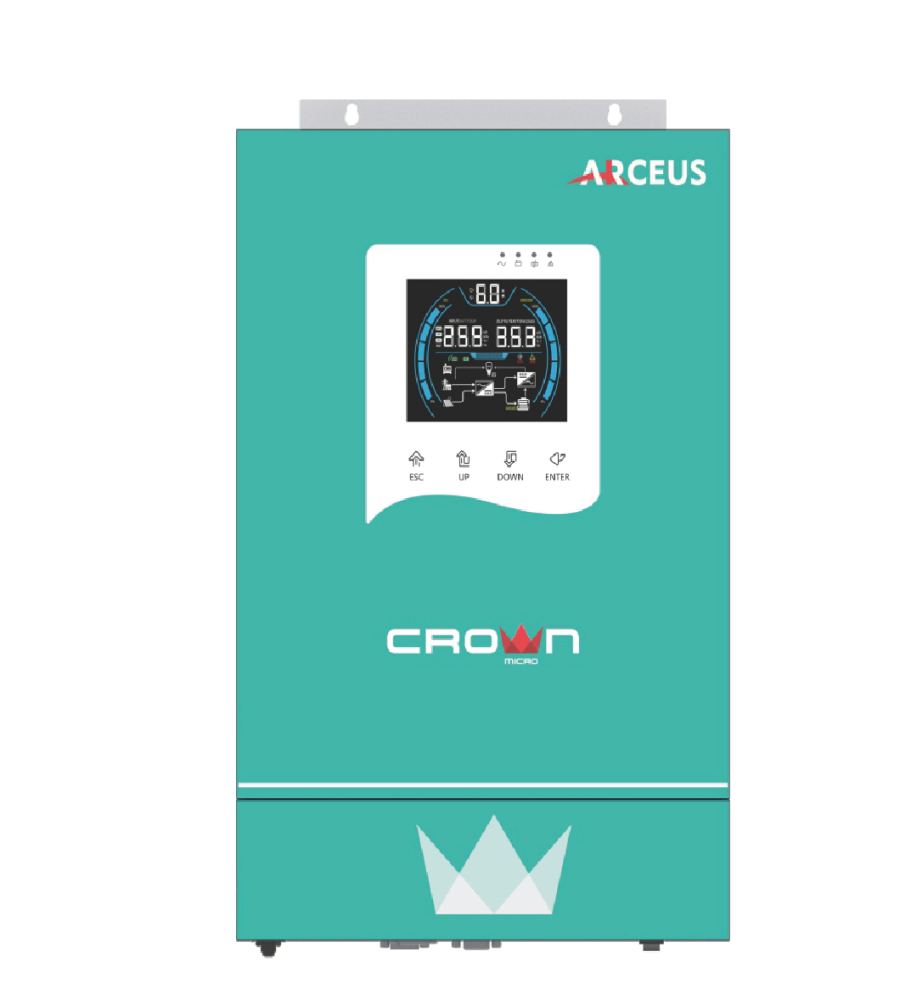

Model: ARCEUS 3.6kwRated Output: 3600 W (3.6 kVA), single-phase
Surge Capability: 7 200 VA (×1.8), allowing appliance startup
AC Output: Pure sine wave, 240VAC ±5%, 50/60 Hz auto-sensing
Efficiency (Peak): ~93.5%
Battery Input: 24 V DC nominal
Solar Charger (MPPT): Built-in, supports up to 5 000 W PV; voltage range 40–450 V, max OC 500 V, 100 A charge
AC Charging: Up to 100 A
Display & Connectivity: 5.2″ LCD touchscreen, USB/RS‑232/RS‑485 (optionally CAN/RS‑485), detachable panel
Alarms & Protections: Overload, short-circuit, over/under voltage, thermal, fan failure, PV overcurrent
Dimensions & Weight: ~107 × 322 × 420 mm; ~7.8 kg
Operating Temp / Humidity: –15 °C to 60 °C; 0–40% RH (non-condensing)
Ingress Rating: IP21 – indoor use only
